Specifications

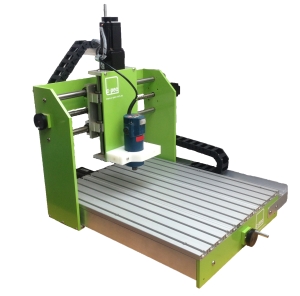

c-pec Router (small):
X-Travel 340mm
Y-Travel 340mm
Z-Travel 125mm
(Larger travel sizes available by request.)
Aluminium construction.
High torque NEMA23 stepper motors.
Handles fitted to allow manual positioning.
Tee-slot Table.
16mm x 5mm pitch ballscrew leadscrews.
20mm linear bearings running on precision ground hardened shafts.
Stepper Motors mounted to leadscrews with self-aligning couplings.
1/4" collet Router.

c-pec Controller:
3-axis controller with output connection to Spindle relay box.
25pin parallel port cable for connection to your computer.

Software:
Includes supply of Mach3 and Vectric Cut2D Desktop and PhotoVCarve software licences.
(Computer not included.)

Warranty:
12 month warranty against defects in materials and workmanship.

Manufactured in Australia.

Total Supply:
c-pec Router
c-pec Controller
Spindle Relay Switching
Mach3 & Vectric Cut2D Desktop & PhotoVCarve Software

Prices on application.

If you would like more information, or to arrange a demonstration, please contact us
